Single Worm Plodder
出條機是將攪拌和研磨好了的皂片、細短條、皂粉等制皂原料擠揉成連續的塑性條狀皂體,供打印機打印成形。
本機采用單聯單螺旋出條,由變頻調速電動機驅動,調速范圍廣,能很好配合打印。出條口設有控溫的電
加熱裝置,保證皂體具有***的內部強度和良好的外觀質量。

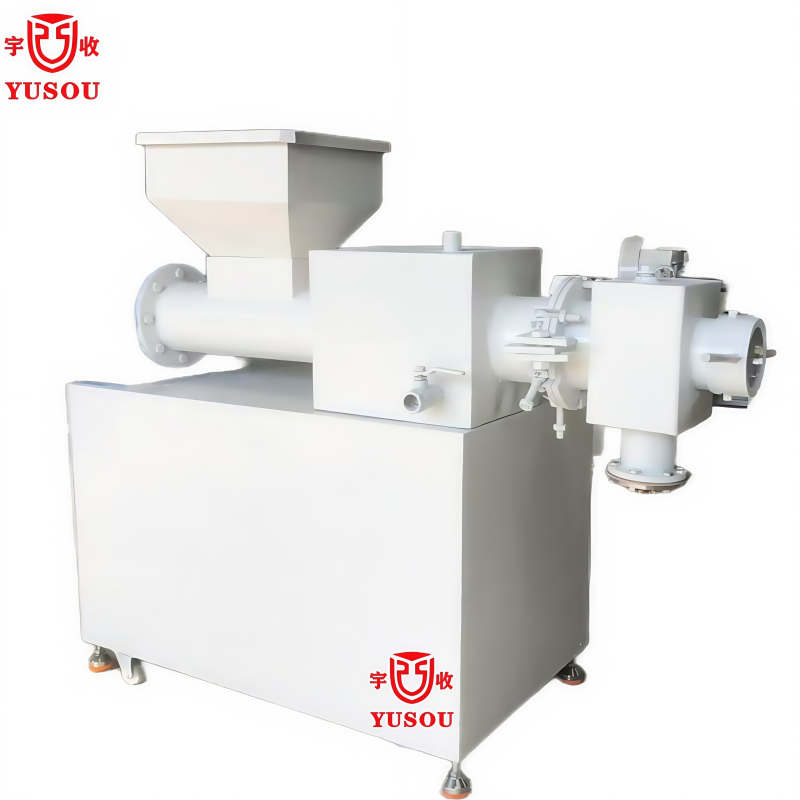

The plodder machine is to make those mix and grind the soap pieces, thin strips, soap powder and other soap raw materials into a continuous soap bar for printer printing.
This machine adopts single worm strip shaft, driven by frequency conversion speed regulating motor, wide range of speed regulation, can be well matched with printing.
The outlet is provided with electric temperature control heating device to ensure that the soap has a certain internal strength and good appearance quality.
Main model
型號 Modle | 產量(kg/h) Capacity | 功率 Power | 螺桿直徑 Worm Dia (mm) | 螺桿轉速 Shaft speed (RPM) |
DDCT-50 | 50 | 1.5 | 50 | 2-20 |
DDCT-90 | 100 | 2.2 | 90 | 2-20 |
DDCT-120 | 150-200 | 3 | 120 | 2-20 |
DDCT-150 | 250-300 | 4 | 150 | 2-20 |
DDCT-180 | 350-400 | 5.5/7.5 | 180 | 2-18 |
