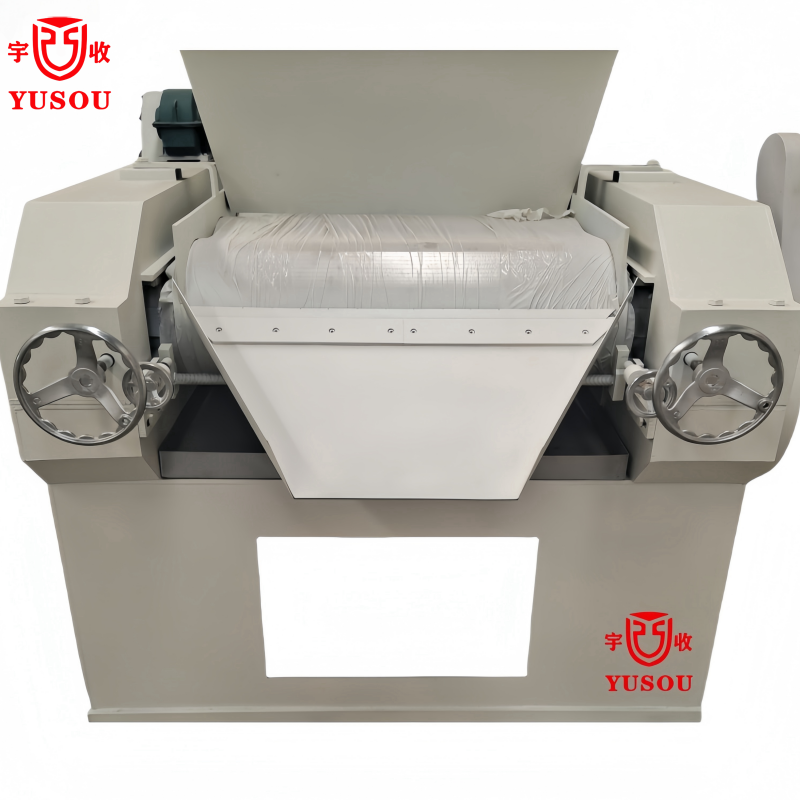

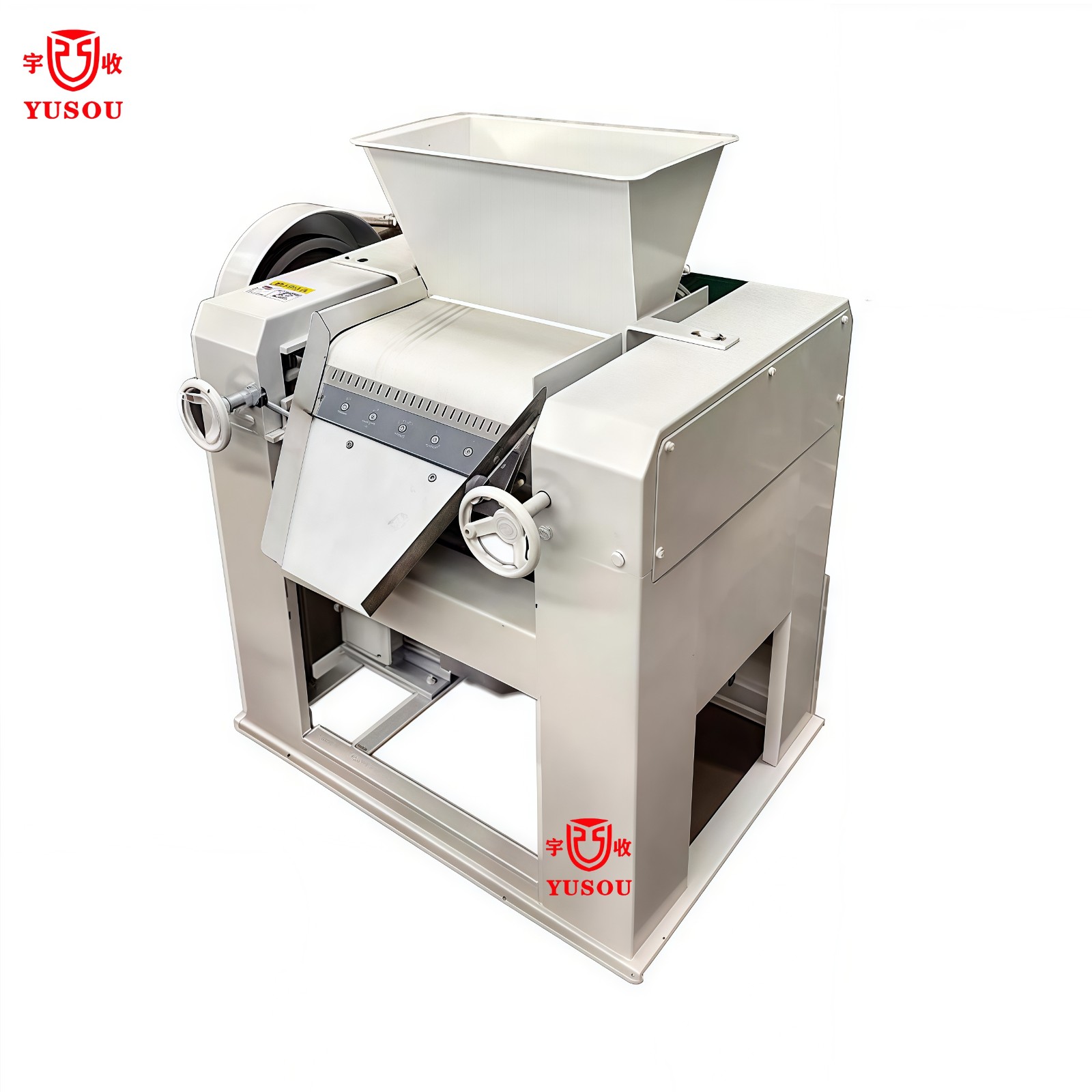

Three Roller Mill
三輥研磨機用于使皂粒和各種輔料混合得更加均勻,提高皂體的密度和質量。
研磨機在水平方向上配置的3個輥軸,通過不同速度的擠壓和研磨,使原料被研磨2次,研磨細度3-18 um。輥筒采用***合金材料制造。
Three roller mill is used to mix soap noodles and various auxiliary materials more evenly and to improve the density and quality of soap.
The machine in the horizontal direction is assambled three roller shafts, through different speeds of extrusion and grinding, the raw materials are ground twice, grinding fineness 3-18 um.
The roller is made of high quality alloy material.
Main Model
型 號Model | YM-150 | YM-250 | YM-305 | YM-405 |
生產能力Capacity(kg/h) | 100-200 | 300-500 | 1000 | 2000 |
輥筒直徑(mm) Dia of Roll | 150 | 250 | 305 | 405 |
輥筒長度(mm) Length of Roll | 300 | 650 | 880 | 1000 |
功率Power(kW) | 3 | 11 | 18.5 | 30 |
外形尺寸(mm) Outer size | 775×820×650 | 1680×1320×1100 | 1950×1900×1450 | 2300×1900×1450 |
重量Weight(kg) | 600 | 2100 | 4500 | 5000 |
